Description

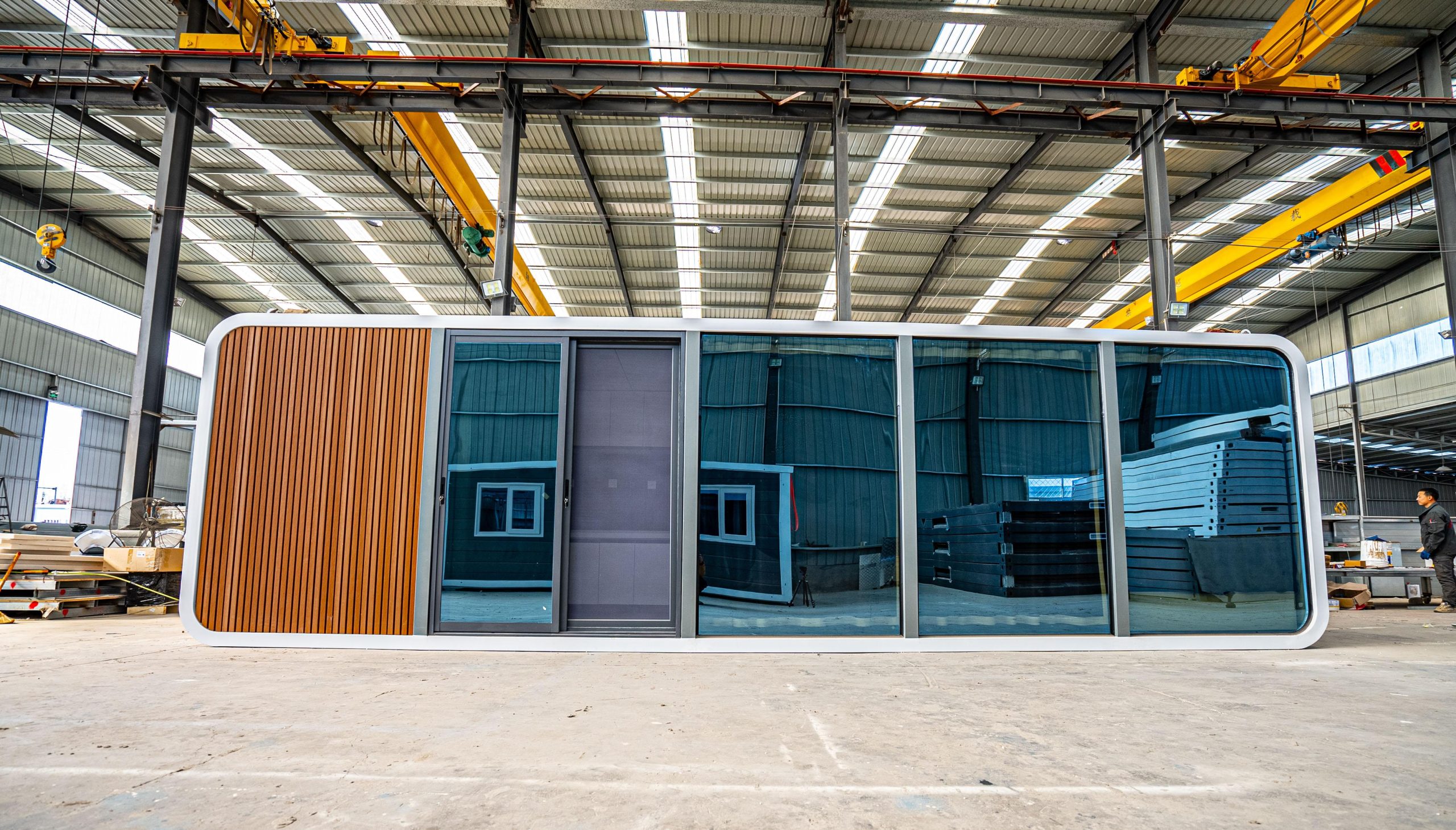

Our ”Apple Cabin” Series
Available in Standard and Deluxe series
The difference between our Standard and Deluxe series are the quality of doors, windows, flooring, kitchen etc.
-Multiple design and color options
-Robust and adaptable structure for all seasons
-We guide you throughout for a turnkey process
Our modular Apple Cabins are a great alternative for standard ho. These modular sections can be joined together to make a beautiful home at half the cost of typical ho.
The futuristic look and very large windows with an amazing view and intelligent devices are perfect for wilderness seekers and city lovers alike..
Download FRENCH Product Information .PDF
Download ENGLISH Product Information .PDF
WHAT IS INCLUDED!
All taxes and customs fees
Transport to major ports in Canada
Unloading at the customer’s local major port.
Loading on final transport to customer’s property
*Unloading container house on your property
Start of our 1 year no nonsense warranty
*** Dimensions can vary from one series to another. The chart below is for example
| 20FT Modular Apple Cabin Configuration Parameters | |||||||||||
| Dimensions | L5800mm (228.3 inches) 19.0 FEET |  |
|||||||||
| W2200mm (86.6 inches) 7.2 FEET | |||||||||||
| H2500mm (98.4 inches) 8.2 FEET | |||||||||||
| Floor area | 20㎡ (215 square feet) | ||||||||||
| House type | 1 bedroom, 1 bathroom, |
||||||||||
| Power | 12kw | ||||||||||
| Net weight | 5.4 ton | ||||||||||
| 30FT Modular Apple Cabin Configuration Parameters | |||||||||||
| Dimensions | L9000mm (354.3 inches) 29.5 FEET |  |
|||||||||
| W2200mm (86.6 inches) 7.2 FEET | |||||||||||
| H2500mm (98.4 inches) 8.2 FEET | |||||||||||
| Floor area | 20㎡ (215 square feet) | ||||||||||
| House type | 1 bedroom, 1 bathroom, |
||||||||||
| Power | 12kw | ||||||||||
| Net weight | 5.4 ton | ||||||||||
| 40FT Modular Apple Cabin Configuration Parameters | |||||||||||
| Dimensions | L11800mm (464.5 inches) 38.7 FEET |  |
|||||||||
| W2200mm (86.6 inches) 7.2 FEET | |||||||||||
| H2500mm (98.4 inches) 8.2 FEET | |||||||||||
| Floor area | 20㎡ (215 square feet) | ||||||||||
| House type | 1 bedroom, 1 bathroom, |
||||||||||
| Power | 12kw | ||||||||||
| Net weight | 5.4 ton | ||||||||||
***Faster customs clearance and no surprises. All transport, taxes, custom fees paid in advance and papers in order and ready!
Insulation R ratings*A 150mm thick polyurethane foam insulation layer will typically have an R-value between R-22.5 and R-42, depending on the specific type of polyurethane foam. Closed-cell spray polyurethane foam typically has an R-value of R-6.5 to R-7 per inch. Therefore, 150mm (approximately 6 inches) of closed-cell spray foam would have an R-value of roughly R-39 to R-42. Rigid foam boards, like polyisocyanurate, can also have higher R-values per inch, with some reaching R-6.5 per inch
Foam insulated 6 inches
Ready for our Canadian winters!
External protection system |
|||
| 1- | Hot dip galvanized steel frame | ||
| Interior walls | |||
| 9mm European pine board (B3 waterproof) + aluminum- plastic board wall and ceiling | |||
| 2- | External shell | Aluminum alloy shell fully covered + fluorocarbon paint fully filled with thermal insulation layer (polyurethane foam) | |
| 3- | Floor | Environmentally friendly
composite flooring (cement pressure board + composite flooring) Anti-Slip Floor |
|
| 4- | Glass curtain | Low-e hollow thermal insulation glass | |
| 5- | Wall | Aluminum plastic panel wall | |
| 6- | Windows | Low-e hollow thermal insulation glass | |
| 7- | Door | Aluminum alloy door (including window screen) | |
| 8- | Periphery | Peripheral ambient light strip | |
Interior decoration |
|||
| 9- | Intelligent devices | Intelligent voice control system
Card insertion and power- off control system Background music system Hotel intelligent access control system Indoor smart electric blackout curtains |
|
| 10- | System | Strong and weak current distribution system
Intelligent water supply and drainage system Whole house smart lighting |
|
| 11- | Wall | Powder coated 2mm aluminum veneer | |
| 12- | Optional | Intelligent electric floor heating system | |
| 13- | Interior / Wall | 9mm European pine board (B3 waterproof) + aluminum- plastic board wall and ceiling | |
| 14- | Lighting | Whole house LED lighting system + interior atmosphere lighting | |
| 15- | Water and electricity | Whole house water and electricity system (flame retardant wire/brand leakage switch/stainless steel corrugated water pipe | |
| 16- | Drainage | System sewage pipe | |
| 17- | Water heater | Midea brand storage water heater | |
| 18- | Towel rack | Multifunctional towel rack | |

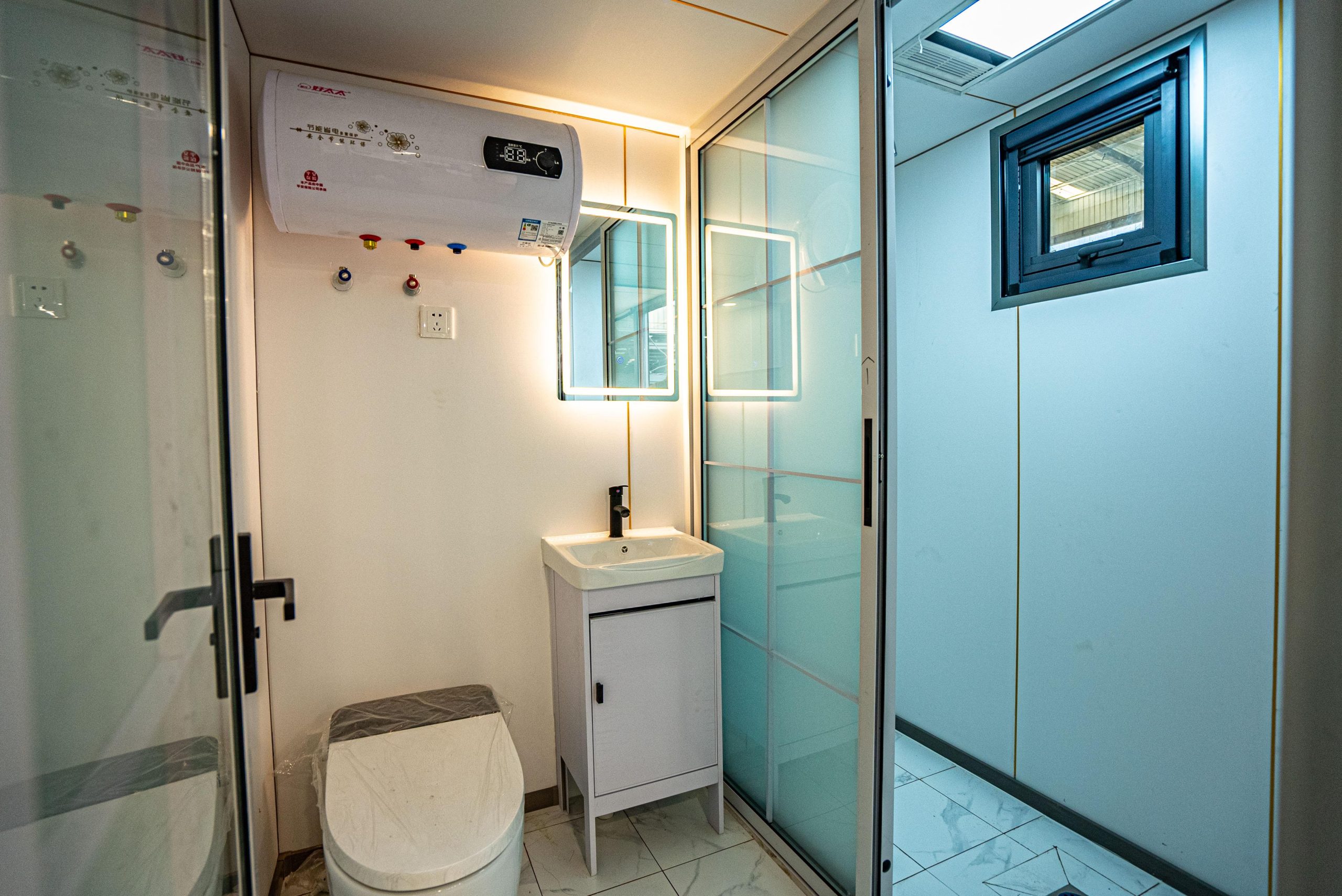

Bathroom |
|||
| 19- | Interior / Wall | 9mm European pine board (B3 waterproof) + aluminum- plastic board wall and ceiling | |
| 20- | Wall | Aluminum plastic panel wall | |
| 21- | Door | Privacy Glass Door | |
| 22- | Floor | Anti slip floor | |
| 23- | Huida brand high end wash | Out faucets, shower, floor drains | |
| 24- | Ventilation and heating | OPPLE brand lighting, ventilation and heating integrated bathroom heater | |
| 25- | Toilet | Huida smart toilet | |
Whole house equipment |
|||
| 26- | Air conditioner | Midea 1.5HP Air Conditioner | |
| 27- | Storage
Cabinet
|
High-end ecological board customization | |
| 28- | Loading | Flat Rack | |
